Overview

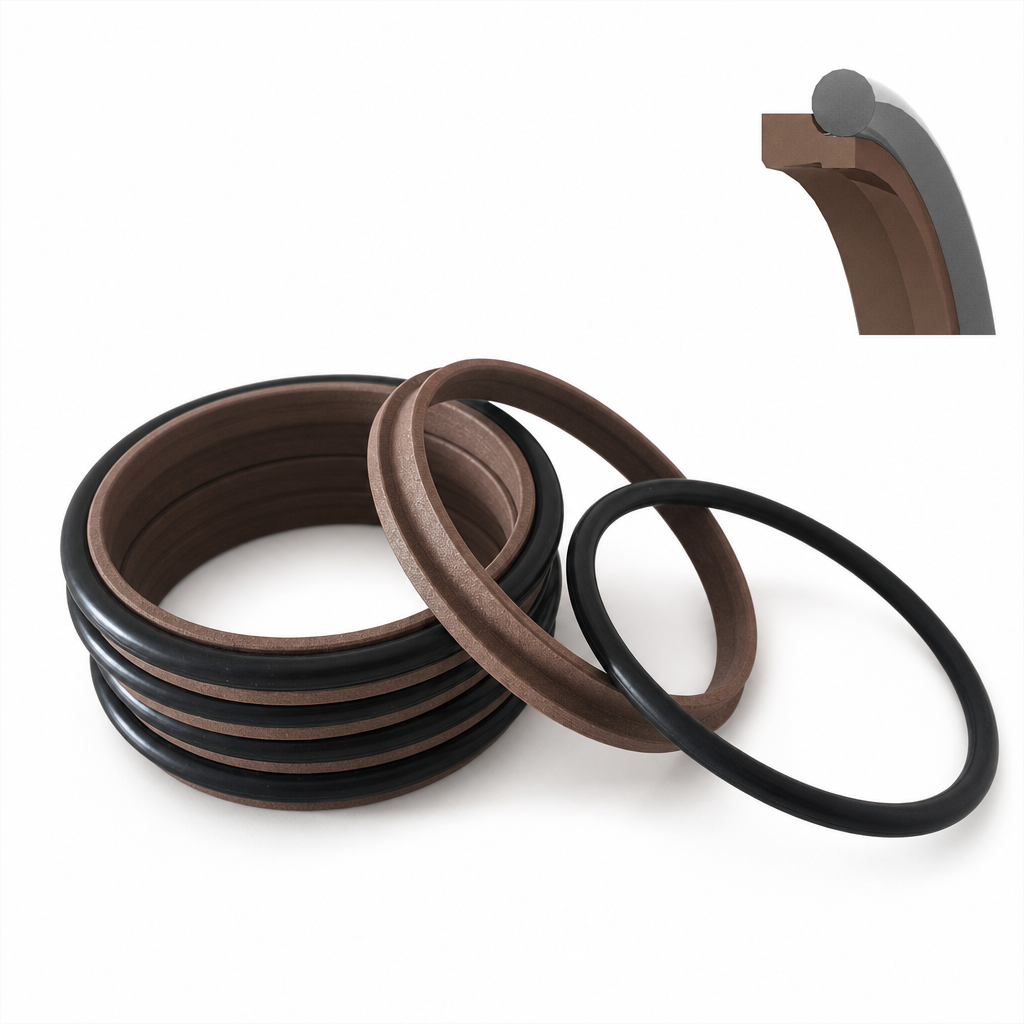

JSPSEAL PTFE Wiper Seal is a high-performance double-lip scraper seal engineered for demanding reciprocating motion applications. It consists of a bronze-filled PTFE wear ring with integrated sealing and dust-excluding lips, paired with an NBR or FKM O-ring energizer that ensures consistent radial contact under varying operating conditions.

Solution

Designed to excel in cold climates, dust-heavy environments, and high-frequency cycles, this wiper seal delivers superior protection for hydraulic and pneumatic systems, servo actuators, and processing equipment in the chemical and food industries.

Key Features

Excellent wiper effect
Strong wear resistance
Chemical resistant performance
Retains oil film
Economical sealing solution
Metal press-fit design

Dimension Table

ITEM	d(Diameter of piston rod)	D(External diameter of groove)	L(Width of groove)
JSPGS-Z2	4	8.8	3.7
JSPGS-Z2	5	9.8	3.7
JSPGS-Z2	6	10.8	3.7
JSPGS-Z2	7	11.8	3.7
JSPGS-Z2	8	12.8	3.7
JSPGS-Z2	10	14.8	3.7
JSPGS-Z2	12	18.8	5
JSPGS-Z2	14	20.8	5
JSPGS-Z2	15	21.8	5
JSPGS-Z2	16	20.8	3.7
JSPGS-Z2	16	22.8	5
JSPGS-Z2	18	22.8	3.7
JSPGS-Z2	18	24.8	5
JSPGS-Z2	20	26.8	5
JSPGS-Z2	22	28.8	5
JSPGS-Z2	24	30.8	5
JSPGS-Z2	25	31.8	5
JSPGS-Z2	26	32.8	5
JSPGS-Z2	28	34.8	5
JSPGS-Z2	30	34.8	3.7
JSPGS-Z2	30	36.8	5
JSPGS-Z2	32	38.8	5
JSPGS-Z2	35	41.8	5
JSPGS-Z2	36	42.8	5
JSPGS-Z2	37	43.8	5
JSPGS-Z2	38	44.8	5
JSPGS-Z2	40	46.8	5
JSPGS-Z2	42	48.8	5
JSPGS-Z2	45	51.8	5
JSPGS-Z2	48	54.8	5
JSPGS-Z2	49	55.8	5
JSPGS-Z2	50	56.8	5
JSPGS-Z2	50.8	56.8	5
JSPGS-Z2	52	58.8	5
JSPGS-Z2	54	60.8	5
JSPGS-Z2	55	61.8	5
JSPGS-Z2	58	64.8	5
JSPGS-Z2	60	66.8	5
JSPGS-Z2	63	69.8	5
JSPGS-Z2	65	73.8	6
JSPGS-Z2	70	78.8	6
JSPGS-Z2	75	83.8	6
JSPGS-Z2	80	88.8	6
JSPGS-Z2	85	93.8	6
JSPGS-Z2	90	98.8	6
JSPGS-Z2	95	103.8	6
JSPGS-Z2	100	108.8	6
JSPGS-Z2	110	118.8	6
JSPGS-Z2	115	123.8	6
JSPGS-Z2	120	128.8	6
JSPGS-Z2	125	133.8	6
JSPGS-Z2	130	138.8	6
JSPGS-Z2	135	143.8	6
JSPGS-Z2	140	148.8	6
JSPGS-Z2	145	148.8	6
JSPGS-Z2	150	158.8	6
JSPGS-Z2	155	163.8	6
JSPGS-Z2	160	168.8	6
JSPGS-Z2	170	178.8	6
JSPGS-Z2	175	183.8	6
JSPGS-Z2	180	188.8	6
JSPGS-Z2	185	193.8	6
JSPGS-Z2	190	198.8	6
JSPGS-Z2	195	203.8	6
JSPGS-Z2	200	208.8	6
JSPGS-Z2	210	218.8	6
JSPGS-Z2	220	228.8	6
JSPGS-Z2	225	233.8	6
JSPGS-Z2	230	238.8	6
JSPGS-Z2	240	248.8	6
JSPGS-Z2	250	258.8	6
JSPGS-Z2	260	272.2	8.4
JSPGS-Z2	270	282.2	8.4
JSPGS-Z2	280	292.2	8.4
JSPGS-Z2	290	302.2	8.4
JSPGS-Z2	300	312.2	8.4
JSPGS-Z2	310	322.2	8.4
JSPGS-Z2	320	332.2	8.4
JSPGS-Z2	330	342.2	8.4
JSPGS-Z2	340	352.2	8.4
JSPGS-Z2	350	362.2	8.4
JSPGS-Z2	360	372.2	8.4
JSPGS-Z2	370	382.2	8.4
JSPGS-Z2	380	392.2	8.4
JSPGS-Z2	390	402.2	8.4
JSPGS-Z2	400	412.2	8.4
JSPGS-Z2	410	422.2	8.4
JSPGS-Z2	420	432.2	8.4
JSPGS-Z2	430	442.2	11
JSPGS-Z2	440	452.2	11
JSPGS-Z2	450	462.2	11
JSPGS-Z2	460	472.2	11
JSPGS-Z2	470	482.2	11
JSPGS-Z2	480	492.2	11
JSPGS-Z2	490	502.2	11
JSPGS-Z2	500	512.2	11
JSPGS-Z2	600	616	11
JSPGS-Z2	630	646	11
JSPGS-Z2	680	700	14
JSPGS-Z2	700	720	14
JSPGS-Z2	770	790	14
JSPGS-Z2	780	800	14
JSPGS-Z2	800	820	14
JSPGS-Z2	880	900	14
JSPGS-Z2	900	920	14
JSPGS-Z5	20	27.6	4.2
JSPGS-Z5	25	32.6	4.2
JSPGS-Z5	28	35.6	4.2
JSPGS-Z5	30	37.6	4.2
JSPGS-Z5	32	39.6	4.2
JSPGS-Z5	36	43.6	4.2
JSPGS-Z5	40	48.8	6.3
JSPGS-Z5	42	50.8	6.3
JSPGS-Z5	45	53.8	6.3
JSPGS-Z5	50	58.8	6.3
JSPGS-Z5	55	63.8	6.3
JSPGS-Z5	56	64.8	6.3
JSPGS-Z5	60	68.8	6.3
JSPGS-Z5	63	71.8	6.3
JSPGS-Z5	65	73.8	6.3
JSPGS-Z5	70	78.8	6.3
JSPGS-Z5	70	82.2	8.1
JSPGS-Z5	75	87.2	8.1
JSPGS-Z5	80	88.8	6.3
JSPGS-Z5	80	92.2	8.1
JSPGS-Z5	85	97.2	8.1
JSPGS-Z5	90	98.8	6.3
JSPGS-Z5	90	102.2	8.1
JSPGS-Z5	95	103.8	6.3
JSPGS-Z5	95	107.2	8.1
JSPGS-Z5	100	108.8	6.3
JSPGS-Z5	100	112.2	8.1
JSPGS-Z5	105	117.2	8.1
JSPGS-Z5	110	118.8	6.3
JSPGS-Z5	110	122.2	8.1
JSPGS-Z5	115	127.2	8.1
JSPGS-Z5	120	132.2	8.1
JSPGS-Z5	125	133.8	6.3
JSPGS-Z5	125	137.2	8.1
JSPGS-Z5	125.4	137.6	8.1
JSPGS-Z5	130	142.2	8.1
JSPGS-Z5	135	147.2	8.1
JSPGS-Z5	140	152.2	8.1
JSPGS-Z5	140	156	9.5
JSPGS-Z5	140.5	156.5	9.5
JSPGS-Z5	150	166	9.5
JSPGS-Z5	153	169	9.5
JSPGS-Z5	155	171	9.5
JSPGS-Z5	160	172.2	8.1
JSPGS-Z5	160	176	9.5
JSPGS-Z5	165	181	9.5
JSPGS-Z5	170	186	9.5
JSPGS-Z5	175	191	9.5
JSPGS-Z5	180	192.2	8.1
JSPGS-Z5	180	196	9.5
JSPGS-Z5	188.2	204.2	9.5
JSPGS-Z5	190	206	9.5
JSPGS-Z5	192	208	9.5
JSPGS-Z5	200	212.2	8.1
JSPGS-Z5	200	216	9.5
JSPGS-Z5	211	227	9.5
JSPGS-Z5	220	232.2	8.1
JSPGS-Z5	220	236	9.5
JSPGS-Z5	240	256	9.5
JSPGS-Z5	250	262.2	8.1
JSPGS-Z5	250	266	9.5
JSPGS-Z5	260	276	9.5
JSPGS-Z5	270	286	9.5
JSPGS-Z5	280	292.2	8.1
JSPGS-Z5	280	296	9.5
JSPGS-Z5	300	316	9.5
JSPGS-Z5	320	332.2	8.1
JSPGS-Z5	320	336	9.5
JSPGS-Z5	330	346	9.5
JSPGS-Z5	350	366	9.5
JSPGS-Z5	360	372.2	8.1
JSPGS-Z5	360	376	9.5
JSPGS-Z5	380	396	9.5
JSPGS-Z5	400	424	14
JSPGS-Z5	440	464	14
JSPGS-Z5	450	474	14
JSPGS-Z5	480	504	14
JSPGS-Z5	500	524	14
JSPGS-Z5	560	584	14
JSPGS-Z5	600	624	14
JSPGS-Z5	650	677.3	16
JSPGS-Z5	680	707.3	16
JSPGS-Z5	700	727.3	16
JSPGS-Z5	750	777.3	16
JSPGS-Z5	770	797.3	16
JSPGS-Z5	785	812.3	16
JSPGS-Z5	800	827.3	16
JSPGS-Z5	810	837.3	16
JSPGS-Z5	850	877.5	16
JSPGS-Z5	900	927.3	16
JSPGS-Z5	950	977.3	16
JSPGS-Z5	1000	1027.3	16

*If the specifications you need are not in this table, please contact us.
