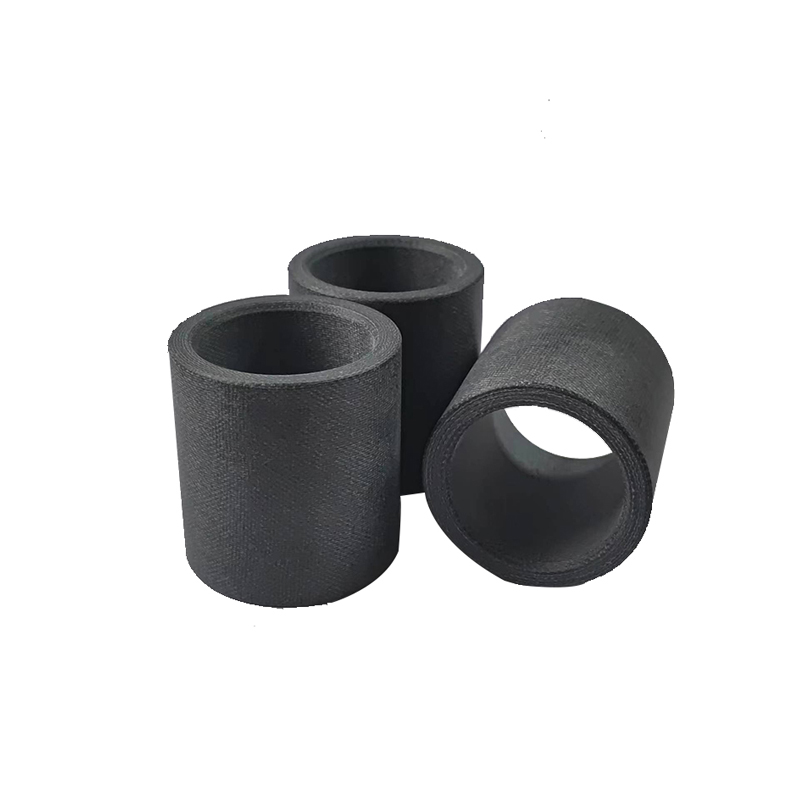

E320C Hydraulic Seal for Bucket Cylinder

Description

Hydraulic seal wear rings and guide rings are designed to guide pistons and rods while preventing direct metal-to-metal contact inside hydraulic cylinders. They effectively reduce friction, absorb side loads, and improve the operating stability of hydraulic systems used in construction and industrial equipment.

Manufactured from premium phenolic resin fabric, POM, nylon, and PTFE materials, these wear rings deliver excellent durability, chemical resistance, and reliable performance. They are suitable for excavators, loaders, and other heavy-duty machinery, providing extended service life even under demanding working conditions.

Solution

JSPSEAL hydraulic wear rings provide reliable guidance and protection for hydraulic cylinders by minimizing friction, preventing metal contact, and reducing component wear. Designed for demanding construction equipment, they improve sealing performance, extend maintenance intervals, lower operating costs, and ensure stable operation under heavy loads and high-temperature working environments.

Key Features

Excellent wear resistance
High load capacity
Low friction performance
Self-lubricating material
Stable dimensional accuracy
Superior vibration absorption
Chemical resistant design

Compatible Equipment Models

Type	OD	ID	H	Type	OD	ID	H
JSPWR	35	30	9.7	JSPWR	55	50	30
JSPWR	35	22	20	JSPWR	55	51	8
JSPWR	35	30	25	JSPWR	56	50	25
JSPWR	35	30	30	JSPWR	59	53	15
JSPWR	35	31	15	JSPWR	60	54	8
JSPWR	37	32	9.7	JSPWR	60	54	15
JSPWR	40	35	9.7	JSPWR	60	54	20
JSPWR	40	35	12.5	JSPWR	60	55	6
JSPWR	40	35	15	JSPWR	60	55	8
JSPWR	40	35	20	JSPWR	60	55	9.7
JSPWR	41	36	5.5	JSPWR	60	55	12
JSPWR	41	36	9.7	JSPWR	60	55	15
JSPWR	45	39	12	JSPWR	60	55	20
JSPWR	45	39	15	JSPWR	60	55	25
JSPWR	45	39	20	JSPWR	60	55	30
JSPWR	45	40	9.7	JSPWR	62	55	12
JSPWR	45	40	12	JSPWR	63	58	5.6
JSPWR	45	40	15	JSPWR	63	58	6
JSPWR	45	40	20	JSPWR	63	58	8
JSPWR	45	40	25	JSPWR	63	58	9.7
JSPWR	45	40	30	JSPWR	63	58	12
JSPWR	46	42	9.7	JSPWR	63	58	15
JSPWR	50	43	8	JSPWR	63	58	20
JSPWR	50	44	8	JSPWR	63	58	25
JSPWR	50	44	15	JSPWR	64	60	9.7
JSPWR	50	44	20	JSPWR	65	55	9.7
JSPWR	50	45	8	JSPWR	65	58	9.7
JSPWR	50	45	9.7	JSPWR	65	58.4	16.3
JSPWR	50	45	12	JSPWR	65	59	9.7
JSPWR	50	45	15	JSPWR	65	59	15
JSPWR	50	45	20	JSPWR	65	59	20
JSPWR	50	45	25	JSPWR	65	60	5.5
JSPWR	50	45	27.8	JSPWR	65	60	6.1
JSPWR	50	45	30	JSPWR	65	60	9.7
JSPWR	50	45	35	JSPWR	65	60	12
JSPWR	50	46	15	JSPWR	65	60	15
JSPWR	54	48	15	JSPWR	65	60	20
JSPWR	55	45	8	JSPWR	65	60	25
JSPWR	55	50	8	JSPWR	65	60	30
JSPWR	55	50	9.7	JSPWR	68	63	9.7
JSPWR	55	50	12.5	JSPWR	68	63	15
JSPWR	55	50	15	JSPWR	70	60	8
JSPWR	55	50	20	JSPWR	70	62	12
JSPWR	55	50	25	JSPWR	70	63	24.5
Type	OD	ID	H	Type	OD	ID	H
JSPWR	70	64	12.5	JSPWR	80	75	9.7
JSPWR	70	64	15	JSPWR	80	75	12
JSPWR	70	64	20	JSPWR	80	75	15
JSPWR	70	65	5.5	JSPWR	80	75	20
JSPWR	70	65	6.1	JSPWR	80	75	25
JSPWR	70	65	7	JSPWR	80	75	30
JSPWR	70	65	8	JSPWR	80	76	15
JSPWR	70	65	9.7	JSPWR	84	78	25
JSPWR	70	65	12	JSPWR	85	80	9.7
JSPWR	70	65	15	JSPWR	85	80	12
JSPWR	70	65	20	JSPWR	85	80	15
JSPWR	70	65	25	JSPWR	85	80	17.8
JSPWR	70	66	9.7	JSPWR	85	80	20
JSPWR	73	70	45.5	JSPWR	85	80	25
JSPWR	75	67	12.5	JSPWR	85	80	30
JSPWR	75	67	15	JSPWR	85	80	35
JSPWR	75	68	25	JSPWR	85	72	15
JSPWR	75	69	9.7	JSPWR	85	75	6.1
JSPWR	75	69	12	JSPWR	85	75	20
JSPWR	75	69	12.5	JSPWR	85	77	15
JSPWR	75	69	15	JSPWR	85	79	12.5
JSPWR	75	69	20	JSPWR	85	79	15
JSPWR	75	69	25	JSPWR	85	79	20
JSPWR	75	69	30	JSPWR	85	79	25
JSPWR	75	70	5.1	JSPWR	85	79	30
JSPWR	75	70	5.5	JSPWR	85	80	4
JSPWR	75	70	6.1	JSPWR	85	80	6
JSPWR	75	70	8	JSPWR	85	80	8
JSPWR	75	70	9.7	JSPWR	86	80	12
JSPWR	75	70	12	JSPWR	86	80	15
JSPWR	75	70	15	JSPWR	90	81	9.7
JSPWR	75	70	20	JSPWR	90	81	12.5
JSPWR	75	70	25	JSPWR	90	82	12.5
JSPWR	75	70	30	JSPWR	90	82	15
JSPWR	75	70	40	JSPWR	90	84	6
JSPWR	75	70	50	JSPWR	90	84	8
JSPWR	80	72	12.5	JSPWR	90	84	9.7
JSPWR	80	72	15	JSPWR	90	84	12.5
JSPWR	80	74	4	JSPWR	90	84	15
JSPWR	80	74	6	JSPWR	90	84	20
JSPWR	80	74	8	JSPWR	90	84	25
JSPWR	80	74	9.7	JSPWR	90	84	30
JSPWR	80	74	12	JSPWR	90	84	35
JSPWR	80	74	15	JSPWR	90	85	4
JSPWR	80	74	20	JSPWR	90	85	6
JSPWR	80	74	25	JSPWR	90	85	8
JSPWR	80	74	30	JSPWR	90	85	9.7
JSPWR	80	75	6	JSPWR	90	85	12.5
JSPWR	80	75	8	JSPWR	90	85	15
Type	OD	ID	H	Type	OD	ID	H
JSPWR	90	85	20	JSPWR	100	94	30
JSPWR	90	85	25	JSPWR	100	95	6
JSPWR	90	85	30	JSPWR	100	95	8
JSPWR	90	85	35	JSPWR	100	95	9.7
JSPWR	90	85	40	JSPWR	100	95	12.5
JSPWR	94	84	8	JSPWR	100	95	15
JSPWR	95	84	20	JSPWR	100	95	20
JSPWR	95	85	9.7	JSPWR	100	95	25
JSPWR	95	86	9.7	JSPWR	100	95	30
JSPWR	95	86	12	JSPWR	104	100	15
JSPWR	95	86	15	JSPWR	105	96	12.5
JSPWR	95	87	6	JSPWR	105	96	25
JSPWR	95	87	6.1	JSPWR	105	97	12.5
JSPWR	95	87	15	JSPWR	105	97	15
JSPWR	95	89	9.7	JSPWR	105	99	12.5
JSPWR	95	89	12.5	JSPWR	105	99	15
JSPWR	95	89	15	JSPWR	105	99	20
JSPWR	95	89	20	JSPWR	105	99	25
JSPWR	95	89	25	JSPWR	105	99	30
JSPWR	95	89	30	JSPWR	105	100	6
JSPWR	95	90	4	JSPWR	105	100	8
JSPWR	95	90	6	JSPWR	105	100	9.7
JSPWR	95	90	8	JSPWR	105	100	12.5
JSPWR	95	90	9.7	JSPWR	105	100	15
JSPWR	95	90	12.5	JSPWR	105	100	20
JSPWR	95	90	15	JSPWR	105	100	25
JSPWR	95	90	20	JSPWR	105	100	30
JSPWR	95	90	25	JSPWR	105	96	9.7
JSPWR	95	90	50	JSPWR	108	103	20
JSPWR	96	90	24	JSPWR	108	104	20
JSPWR	96	90	29	JSPWR	110	100	15
JSPWR	100	90	15	JSPWR	110	100	24
JSPWR	100	91	6	JSPWR	110	101	6
JSPWR	100	91	9.7	JSPWR	110	101	9.7
JSPWR	100	91	12.5	JSPWR	110	101	12.5
JSPWR	100	92	9.7	JSPWR	110	101	15
JSPWR	100	92	15	JSPWR	110	101	27.5
JSPWR	100	92	30	JSPWR	110	102	8
JSPWR	100	93.4	16.3	JSPWR	110	102	12.5
JSPWR	100	94	6	JSPWR	110	102	15
JSPWR	100	94	9	JSPWR	110	102	20
JSPWR	100	94	9.7	JSPWR	110	102	25
JSPWR	100	94	11	JSPWR	110	103	35
JSPWR	100	94	12.5	JSPWR	110	104	6
JSPWR	100	94	15	JSPWR	110	104	11
JSPWR	100	94	20	JSPWR	110	104	12
JSPWR	100	94	22	JSPWR	110	104	15
JSPWR	100	94	25	JSPWR	110	104	20
JSPWR	100	94	27	JSPWR	110	104	22.5
Type	OD	ID	H	Type	OD	ID	H
JSPWR	110	104	25	JSPWR	120	114	16
JSPWR	110	104	27.5	JSPWR	120	114	20
JSPWR	110	104	30	JSPWR	120	114	22.5
JSPWR	110	104	35	JSPWR	120	114	25
JSPWR	110	104	40	JSPWR	120	114	27.5
JSPWR	110	105	4	JSPWR	120	114	30
JSPWR	110	105	6	JSPWR	120	114	35
JSPWR	110	105	8	JSPWR	120	114	40
JSPWR	110	105	9.7	JSPWR	120	115	6.1
JSPWR	110	105	12.5	JSPWR	120	115	8
JSPWR	110	105	15	JSPWR	120	115	9.7
JSPWR	110	105	20	JSPWR	120	115	12.5
JSPWR	110	105	25	JSPWR	120	115	15
JSPWR	110	105	26	JSPWR	120	115	20
JSPWR	110	105	30	JSPWR	120	115	25
JSPWR	115	105	15	JSPWR	120	115	30
JSPWR	115	105	20	JSPWR	120	115	35
JSPWR	115	106	6	JSPWR	120	104	20
JSPWR	115	106	9.7	JSPWR	120	110	15
JSPWR	115	106	12.5	JSPWR	120	111	6.1
JSPWR	115	106	15	JSPWR	120	111	9.7
JSPWR	115	107	8	JSPWR	120	111	15
JSPWR	115	107	12	JSPWR	120	112	6
JSPWR	115	107	15	JSPWR	120	112	8
JSPWR	115	109	12.5	JSPWR	125	109	20
JSPWR	115	109	15	JSPWR	125	109	30
JSPWR	115	109	20	JSPWR	125	115	15
JSPWR	115	109	25	JSPWR	125	115	20
JSPWR	115	109	30	JSPWR	125	116	15
JSPWR	115	109	40	JSPWR	125	117	8
JSPWR	115	110	6	JSPWR	125	117	15
JSPWR	115	110	8	JSPWR	125	118	9.7
JSPWR	115	110	9.7	JSPWR	125	118	15
JSPWR	115	110	12.5	JSPWR	125	118	20
JSPWR	115	110	15	JSPWR	125	118	30
JSPWR	115	110	20	JSPWR	125	118	50
JSPWR	115	110	25	JSPWR	125	119	8
JSPWR	115	110	30	JSPWR	125	119	9.7
JSPWR	115	110	35	JSPWR	125	119	15
JSPWR	116	110	30	JSPWR	125	119	16.5
JSPWR	116	110	55	JSPWR	125	119	20
JSPWR	118	108	15	JSPWR	125	119	25
JSPWR	120	112	15	JSPWR	125	119	30
JSPWR	120	113	20	JSPWR	125	119	35
JSPWR	120	113	30	JSPWR	125	119	40
JSPWR	120	114	6	JSPWR	125	120	6.1
JSPWR	120	114	11	JSPWR	125	120	8
JSPWR	120	114	12	JSPWR	125	120	9.7
JSPWR	120	114	15	JSPWR	125	120	12.5
Type	OD	ID	H	Type	OD	ID	H
JSPWR	125	120	15	JSPWR	135	128	35
JSPWR	125	120	20	JSPWR	135	128	50
JSPWR	125	120	25	JSPWR	135	129	6
JSPWR	125	120	30	JSPWR	135	129	8
JSPWR	125	120	40	JSPWR	135	129	15
JSPWR	125	120	50	JSPWR	135	129	20
JSPWR	127	120	32	JSPWR	135	129	25
JSPWR	130	120	9.7	JSPWR	135	129	30
JSPWR	130	120	15	JSPWR	135	129	35
JSPWR	130	120	20	JSPWR	135	130	8
JSPWR	130	120	30	JSPWR	135	130	9.7
JSPWR	130	121	15	JSPWR	135	130	12.5
JSPWR	130	122	15	JSPWR	135	130	15
JSPWR	130	123	9.7	JSPWR	135	130	20
JSPWR	130	123	15	JSPWR	135	130	25
JSPWR	130	123	20	JSPWR	135	130	28
JSPWR	130	123	25	JSPWR	138	133	23.5
JSPWR	130	123	27	JSPWR	140	124	15
JSPWR	130	123	30	JSPWR	140	128	12.2
JSPWR	130	123	35	JSPWR	140	128	17.5
JSPWR	130	123	40	JSPWR	140	128	20
JSPWR	130	124	13	JSPWR	140	130	20
JSPWR	130	124	15	JSPWR	140	132	15
JSPWR	130	124	16.5	JSPWR	140	132	40
JSPWR	130	124	18	JSPWR	140	133	9.7
JSPWR	130	124	26	JSPWR	140	133	12.5
JSPWR	130	124	30	JSPWR	140	133	15
JSPWR	130	124	40	JSPWR	140	133	17.5
JSPWR	130	125	6	JSPWR	140	133	20
JSPWR	130	125	8	JSPWR	140	133	25
JSPWR	130	125	9.7	JSPWR	140	133	30
JSPWR	130	125	12.5	JSPWR	140	133	35
JSPWR	130	125	15	JSPWR	140	133	40
JSPWR	130	125	20	JSPWR	140	133	45
JSPWR	130	125	25	JSPWR	140	133	50
JSPWR	130	125	30	JSPWR	140	134	12.5
JSPWR	130	125	50	JSPWR	140	134	15
JSPWR	135	125	9.7	JSPWR	140	134	20
JSPWR	135	125	15	JSPWR	140	134	25
JSPWR	135	125	25	JSPWR	140	134	30
JSPWR	135	127	8	JSPWR	140	134	40
JSPWR	135	127	15	JSPWR	140	134	50
JSPWR	135	127	25	JSPWR	140	135	8
JSPWR	135	128	9.7	JSPWR	140	135	9.7
JSPWR	135	128	12.5	JSPWR	140	135	12
JSPWR	135	128	15	JSPWR	140	135	12.5
JSPWR	135	128	18	JSPWR	140	135	15
JSPWR	135	128	20	JSPWR	140	135	20
JSPWR	135	128	25	JSPWR	140	135	25
Type	OD	ID	H	Type	OD	ID	H
JSPWR	140	135	30	JSPWR	150	144	15
JSPWR	140	135	35	JSPWR	150	144	20
JSPWR	140	135	50	JSPWR	150	144	25
JSPWR	145	140	25	JSPWR	150	144	35
JSPWR	145	140	30	JSPWR	150	144	40
JSPWR	145	140	40	JSPWR	150	144	50
JSPWR	145	140	50	JSPWR	150	145	8
JSPWR	145	133	12.5	JSPWR	150	145	9.7
JSPWR	145	133	15	JSPWR	150	145	12.5
JSPWR	145	137	15	JSPWR	150	145	15
JSPWR	145	137	20	JSPWR	150	145	20
JSPWR	145	138	9.7	JSPWR	150	145	25
JSPWR	145	138	12.5	JSPWR	150	145	35
JSPWR	145	138	15	JSPWR	150	145	40
JSPWR	145	138	17.5	JSPWR	150	145	50
JSPWR	145	138	20	JSPWR	151	145	15
JSPWR	145	138	25	JSPWR	152	145	16
JSPWR	145	138	30	JSPWR	155	149	25
JSPWR	145	138	35	JSPWR	155	150	8
JSPWR	145	138	40	JSPWR	155	150	9.7
JSPWR	145	138	50	JSPWR	155	150	15
JSPWR	145	139	25	JSPWR	155	150	20
JSPWR	145	140	8	JSPWR	155	150	25
JSPWR	145	140	9.7	JSPWR	155	150	30
JSPWR	145	140	12.5	JSPWR	156	150	15
JSPWR	145	140	15	JSPWR	160	148	12.5
JSPWR	145	140	20	JSPWR	160	148	15
JSPWR	150	135	12.5	JSPWR	160	148	17.5
JSPWR	150	138	12.5	JSPWR	160	148	20
JSPWR	150	138	15	JSPWR	160	148	22
JSPWR	150	138	17.5	JSPWR	160	148	25
JSPWR	150	142	8	JSPWR	160	150	20
JSPWR	150	142	9	JSPWR	160	152	9
JSPWR	150	142	15	JSPWR	160	152	25
JSPWR	150	142	20	JSPWR	160	152	35
JSPWR	150	142	25	JSPWR	160	153	15
JSPWR	150	142	40	JSPWR	160	153	20
JSPWR	150	143	15	JSPWR	160	153	21
JSPWR	150	143	17.5	JSPWR	160	153	25
JSPWR	150	143	20	JSPWR	160	153	30
JSPWR	150	143	21	JSPWR	160	153	35
JSPWR	150	143	22	JSPWR	160	153	40
JSPWR	150	143	25	JSPWR	160	153	45
JSPWR	150	143	30	JSPWR	160	154	15
JSPWR	150	143	35	JSPWR	160	154	40
JSPWR	150	143	40	JSPWR	160	154	50
JSPWR	150	143	45	JSPWR	160	155	8
JSPWR	150	143	50	JSPWR	160	155	9.7
JSPWR	150	144	6	JSPWR	160	155	12.5
Type	OD	ID	H	Type	OD	ID	H
JSPWR	160	155	15	JSPWR	170	164	15
JSPWR	160	155	20	JSPWR	170	164	20
JSPWR	160	155	25	JSPWR	170	164	35
JSPWR	160	155	40	JSPWR	170	164	50
JSPWR	160	155	50	JSPWR	170	165	8
JSPWR	165	157	35	JSPWR	170	165	9.7
JSPWR	165	157	45	JSPWR	170	165	12.5
JSPWR	165	157	50	JSPWR	170	165	15
JSPWR	165	158	15	JSPWR	170	165	20
JSPWR	165	158	25	JSPWR	170	165	25
JSPWR	165	158	50	JSPWR	170	165	30
JSPWR	165	159	9.7	JSPWR	170	165	35
JSPWR	165	159	15	JSPWR	170	165	50
JSPWR	165	159	25	JSPWR	170	166	20
JSPWR	165	159	30	JSPWR	175	167	25
JSPWR	165	159	40	JSPWR	175	168	15
JSPWR	165	160	9.7	JSPWR	175	168	25
JSPWR	165	160	12.5	JSPWR	175	169	40
JSPWR	165	160	15	JSPWR	175	169	50
JSPWR	165	160	20	JSPWR	175	170	9.7
JSPWR	165	160	25	JSPWR	175	170	15
JSPWR	165	160	30	JSPWR	175	170	25
JSPWR	165	160	35	JSPWR	180	175	15
JSPWR	165	160	40	JSPWR	180	175	20
JSPWR	165	160	50	JSPWR	180	175	22.5
JSPWR	165	153	20	JSPWR	180	175	25
JSPWR	165	157	15	JSPWR	180	175	30
JSPWR	165	157	20	JSPWR	180	175	35
JSPWR	165	157	25	JSPWR	180	175	40
JSPWR	165	157	30	JSPWR	180	175	45
JSPWR	170	158	15	JSPWR	180	175	50
JSPWR	170	158	17.5	JSPWR	180	168	22.5
JSPWR	170	158	20	JSPWR	180	172	9
JSPWR	170	162	15	JSPWR	180	172	12
JSPWR	170	162	20	JSPWR	180	172	12.5
JSPWR	170	162	22	JSPWR	180	172	15
JSPWR	170	162	25	JSPWR	180	172	20
JSPWR	170	162	27.5	JSPWR	180	172	22.5
JSPWR	170	162	28	JSPWR	180	172	25
JSPWR	170	162	30	JSPWR	180	172	27.5
JSPWR	170	162	35	JSPWR	180	172	28.3
JSPWR	170	162	40	JSPWR	180	172	30
JSPWR	170	162	45	JSPWR	180	172	35
JSPWR	170	162	50	JSPWR	180	172	40
JSPWR	170	163	15	JSPWR	180	172	45
JSPWR	170	163	40	JSPWR	180	172	50
JSPWR	170	164	6.1	JSPWR	180	172	55
JSPWR	170	164	9.7	JSPWR	180	173	22.5
JSPWR	170	164	12.5	JSPWR	180	173	30
Type	OD	ID	H	Type	OD	ID	H
JSPWR	180	173	45	JSPWR	190	185	50
JSPWR	180	173	50	JSPWR	195	187	22.5
JSPWR	180	174	15	JSPWR	195	190	15
JSPWR	180	174	20	JSPWR	195	190	20
JSPWR	180	174	35	JSPWR	195	190	25
JSPWR	180	174	40	JSPWR	195	190	30
JSPWR	180	174	50	JSPWR	200	188	22.5
JSPWR	180	175	8	JSPWR	200	188	25
JSPWR	180	175	12	JSPWR	200	188	30
JSPWR	180	175	12.5	JSPWR	200	192	15
JSPWR	185	172	22.5	JSPWR	200	192	20
JSPWR	185	173	17.5	JSPWR	200	192	22.5
JSPWR	185	173	20	JSPWR	200	192	25
JSPWR	185	173	22.5	JSPWR	200	192	28.5
JSPWR	185	173	25	JSPWR	200	192	30
JSPWR	185	177	15	JSPWR	200	192	40
JSPWR	185	177	22.5	JSPWR	200	192	45
JSPWR	185	177	25	JSPWR	200	192	50
JSPWR	185	177	45	JSPWR	200	193	20
JSPWR	185	178	15	JSPWR	200	194	15
JSPWR	185	180	8	JSPWR	200	194	20
JSPWR	185	180	15	JSPWR	200	194	22.5
JSPWR	185	180	20	JSPWR	200	194	25
JSPWR	185	180	22.5	JSPWR	200	194	30
JSPWR	185	180	25	JSPWR	200	194	35
JSPWR	185	180	50	JSPWR	200	194	40
JSPWR	190	182	9	JSPWR	200	194	50
JSPWR	190	182	15	JSPWR	200	195	8
JSPWR	190	182	20	JSPWR	200	195	9.7
JSPWR	190	182	22.5	JSPWR	200	195	15
JSPWR	190	182	25	JSPWR	200	195	20
JSPWR	190	182	28.5	JSPWR	200	195	25
JSPWR	190	182	30	JSPWR	200	195	30
JSPWR	190	182	40	JSPWR	200	192	20
JSPWR	190	182	45	JSPWR	200	195	15
JSPWR	190	182	50	JSPWR	200	195	20
JSPWR	190	182	55	JSPWR	200	195	25
JSPWR	190	183	15	JSPWR	200	195	30
JSPWR	190	183	29.8	JSPWR	205	200	6
JSPWR	190	184	15	JSPWR	205	200	20
JSPWR	190	184	20	JSPWR	210	205	15
JSPWR	190	184	30	JSPWR	210	205	20
JSPWR	190	184	50	JSPWR	210	198	30
JSPWR	190	185	8	JSPWR	210	202	9
JSPWR	190	185	9.7	JSPWR	210	202	28.5
JSPWR	190	185	15	JSPWR	210	203	20
JSPWR	190	185	20	JSPWR	215	205	20
JSPWR	190	185	25	JSPWR	215	207	30
JSPWR	190	185	30	JSPWR	215	207	50
Type	OD	ID	H	Type	OD	ID	H
JSPWR	215	209	20	JSPWR	250	244	30
JSPWR	215	209	25	JSPWR	250	245	15
JSPWR	215	210	20	JSPWR	250	245	25
JSPWR	215	210	30	JSPWR	250	245	30
JSPWR	220	208	22.5	JSPWR	250	245	20
JSPWR	220	208	30	JSPWR	250	245	30
JSPWR	220	209	19	JSPWR	255	250	25
JSPWR	220	212	9	JSPWR	255	250	25
JSPWR	220	212	25	JSPWR	260	252	15
JSPWR	220	212	28.5	JSPWR	260	253	22
JSPWR	220	214	15	JSPWR	260	254	30
JSPWR	220	214	20	JSPWR	260	255	25
JSPWR	220	214	25	JSPWR	260	255	30
JSPWR	220	214	40	JSPWR	265	253	22
JSPWR	220	215	15	JSPWR	265	260	25
JSPWR	220	215	20	JSPWR	265	260	30
JSPWR	220	215	25	JSPWR	266	260	25
JSPWR	225	195	20	JSPWR	266	260	40
JSPWR	225	213	22.5	JSPWR	270	265	20
JSPWR	225	213	25	JSPWR	270	262	35
JSPWR	225	217	25	JSPWR	270	265	30
JSPWR	225	217	45	JSPWR	280	272	15
JSPWR	225	217	50	JSPWR	280	272	25
JSPWR	225	219	20	JSPWR	280	274	30
JSPWR	225	219	50	JSPWR	280	272	25
JSPWR	225	220	20	JSPWR	280	275	20
JSPWR	230	218	25	JSPWR	280	275	25
JSPWR	230	223	20	JSPWR	280	275	30
JSPWR	230	224	25	JSPWR	290	285	30
JSPWR	230	224	30	JSPWR	295	290	25
JSPWR	230	225	150	JSPWR	320	315	25
JSPWR	230	225	20	JSPWR	320	315	30
JSPWR	230	225	25	JSPWR	325	320	30
JSPWR	230	225	20	JSPWR	345	340	30
JSPWR	230	225	25	JSPWR	348	340	30
JSPWR	230	225	30	JSPWR	355	350	30
JSPWR	235	228	25.3	JSPWR	360	355	24.6
JSPWR	235	230	15	JSPWR	360	352	35
JSPWR	235	230	25	JSPWR	360	355	30
JSPWR	235	230	30	JSPWR	360	355	40
JSPWR	238	230	30	JSPWR	365	360	30
JSPWR	240	232	25	JSPWR	380	375	30
JSPWR	245	240	30	JSPWR	385	380	30
JSPWR	250	238	22.5	JSPWR	400	395	30
JSPWR	250	238	25	JSPWR	475	470	30
JSPWR	250	238	27.5	JSPWR	475	470	40
JSPWR	250	242	25	JSPWR	500	495	30
JSPWR	250	242	55
JSPWR	250	244	25

* All manufacturer's names, part numbers, and descriptions are used for reference purposes only. We do not imply that any part shown is the product of these manufacturers.

Shipping Information

We ship worldwide via DHL, FedEx, UPS, TNT, and EMS for small orders, and by sea freight for bulk orders. Standard delivery time is 5–7 working days for small orders and 15–30 days for sea freight.

All products are carefully packaged in neutral packaging with foam protection to prevent damage during transit. Custom packaging with your branding is available for OEM orders.

Payment Terms

We accept multiple payment methods for your convenience. For new customers, we typically require 100% advance payment for small orders. For established partnerships, we offer flexible terms including 30% deposit with balance before shipping.
